PRODUCT CODE : REL300300000

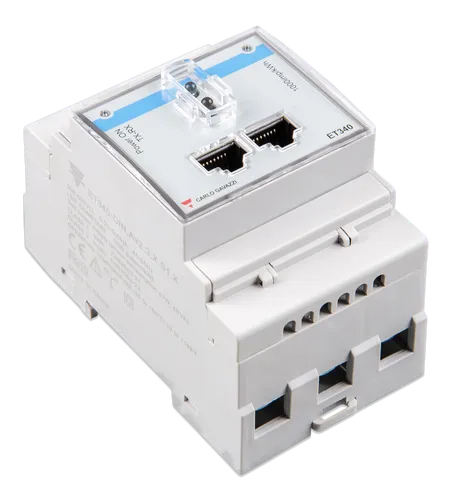

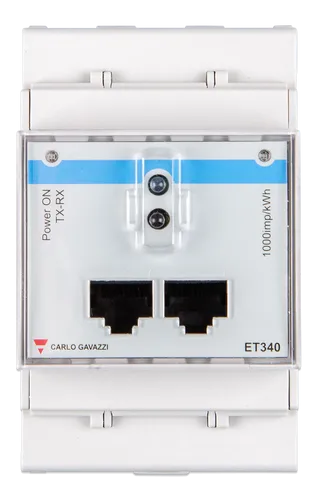

Victron Energy Meter ET340 Single phase AC loads/inputs for Color control GX

The ET340 (for three phase max. 65A) Energy Meters are typically used in an Energy Storage System.

To measure the power and energy of the whole application at the distribution box. Or to measure the output of a PV Inverter, to display the data on the Color Control GX and the VRM Portal.

Introduction And Usage

This document is the manual for the single phase max 100 A Energy Meter.

The Energy Meter can be used for four things:

• Grid meter, and used as control input for an (1).
• Measure the output of a PV Inverter
• Measure the output of a AC Genset

The meter is connected to the Color Control GX. There are two options in its wiring:

• Direct connection, either using the RS485 to USB interface with 1.8m cable length, or the 5.0m cable.
• Wireless connection via Zigbee
